XP/RSTP Series LSRS-XP

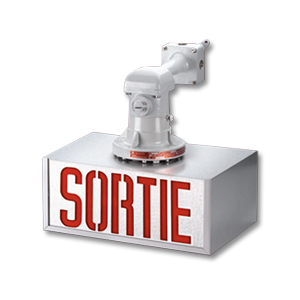

The LSRS-XP Series of remote exit signs are designed to cover emergency lighting applications for the entire spectrum of hazardous locations, where inflammable gases, vapors, liquids, dust particles or fabrics tissues are permanently present or are likely to exist.

Specifications

  • LSRS-XP Series Remote Exit Signs
  • CSA Certified for use in hazardous locations: # Class I, Divisions 1 and 2, Groups A, B, C, D # Class II, Divisions 1 and 2, Groups E, F, G # Class III, Divisions 1 and 2
  • Die-cast aluminum body with grey epoxy powder coat finish
  • Sortie sign housing and faceplate made of industrial-grade 14-gauge steel, grey enamel finish
  • Faceplate features universal directional chevrons (knockouts)
  • Two-wire input circuit for both AC and DC inputs
  • Available in 6, 12, 24 and 120VAC/dc
  • Light source is ALINGAP LEDs; consumes less than 5W in AC and DC mode
  • New, easy-to-build catalogue number based on the Lumacell┬« Severity Codes
  • Meets or exceeds CSA 22.2 No.141
