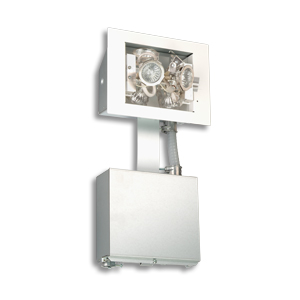

Mini-Phantom™ Battery Unit

The Next Generation: No back-box / Higher capacity / Easy retrofit. The Mini Phantom™ form Lumacell® is specially designed for retrofitting applications.

Specifications

  • Easy to retrofit in finished walls: the unit slides in through an 8.25” by 5.75” hole
  • No back-box needed to pre-install
  • Input: Standard AC input 120/347VAC; optional 120/277VAC
  • Output: 12VDC with up to 100W of power
  • Battery: choice of sealed, maintenance-free Lead-Calcium or Nickel-Metal Hydride
  • Remote capacity: can drive several wall or ceiling-mount 12VDC remote Phantom™ fixtures
  • Charger: micro-controller driven, temperature compensated, high-precision, fast recharge
  • Remote AC fixture: direct connection to 120 or 347VAC power generators
  • MR16 halogen lamps; power range from 12W to 50W, LED; 4W, 5W and 6W
  • Meets or exceeds CSA 22.2 No.141-15
