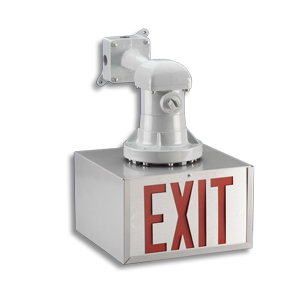

LPEX-XP Series

The LPEX-XP Series of remote exit signs are designed to cover emergency lighting applications for the entire spectrum of hazardous locations, where inflammable gases, vapors, liquids, dust particles or fabrics tissues are permanently present or are likely to exist. The LPEX-XP remote exit signs can be connected to the TS transfer panel, the EXP Series of battery equipment, or the Emergi-lite DC system.

Specifications

  • LPEX-XP Series Remote Exit Signs
  • CSA Certified for use in hazardous locations:
  • Class I, Divisions 1 and 2, Groups A, B, C, D
  • Class II, Divisions 1 and 2, Groups E, F, G
  • Class III, Divisions 1 and 2
  • Die-cast aluminum body with grey epoxy powder coat finish
  • Exit housing and faceplate made of industrial-grade 14-gauge steel and finished in grey enamel
  • Faceplate features universal knockout chevrons
  • Two-wire input circuit for both AC and DC inputs
  • Available in 6, 12, 24 and 120Vac/dc
  • LED lamp with ALINGAP LEDs; consumes less than 5 watts in AC and DC mode
  • New, easy-to-build catalogue number based on the Emergi-lite Severity Codes
  • CSA certified, meets or exceeds C860 requirements TS Series Transfer Panel
  • Available with explosion-proof housing (Class 1, Division 1) or NEMA-1 housing (for use outside the hazardous location area)
  • Standard AC input: 120Vac, optional 277Vac, 347Vac; standard DC input: 6, 12 or 24Vdc
  • Two-wire output with permanently present AC/DC low voltage
  • Output power: 25W, can drive up to five (5) units of the LPEX-XP remote exit series
  • Also available as self-powered exit sign, battery unit and combo unit; see EXP catalogue sheet
  • New, easy-to-build catalogue number based on the Emergi-lite Severity Codes
